Matrox 4Sight XV6

Matrox 4Sight XV6

Matrox® 4Sight XV6 is an expandable imaging computer designed for demanding imaging workloads.

Its reliable platform is ideal for video acquisition, offering four full-height, half-length PCIe® expansion slots designed to host multiple cards, including frame grabbers operating at full performance. It can support up to three displays—VGA, DVI-D, HDMI, and/or DisplayPort—from the available outputs.

Description

Matrox 4Sight XV6 at a glance

  • Tackle demanding imaging applications using an eighth-generation Intel Core processor
  • Capture directly from GigE Vision® and USB3 Vision® cameras
  • Broaden support for Camera Link® , CoaXPress® , DisplayPort, HDMI, and SDI video interfaces using Matrox Imaging frame grabbers
  • Customize I/O capabilities through four PCIe slots accepting full-height, half-length cards
  • Install in space-limited industrial environments given its small footprint and rugged design

Ideal for intensive machine vision applications

Matrox® 4Sight XV6 is an expandable imaging computer designed for demanding imaging workloads. Its reliable platform is ideal for video acquisition, offering four full-height, half-length PCIe® expansion slots designed to host multiple cards, including frame grabbers operating at full performance. It can support up to three displays—VGA, DVI-D, HDMI, and/or DisplayPort—from the available outputs.

This powerful vision controller is the latest iteration of the Matrox 4Sight series, delivering desktop-level processing performance and substantial expansion capabilities, all packaged in a small, rugged casing. Powered by an eighth-generation Intel® Core™ processor, the Matrox 4Sight XV6 is capable of supporting intensive machine vision applications.

Wide range of expansion options

Camera interfaces abound and Matrox 4Sight XV6 provides support for these either directly or with one or more expansion boards. The addition of Matrox Imaging frame grabber boards enables video capture from Camera Link, CoaXPress, DisplayPort, HDMI, and SDI sources including cameras.

Frame grabbers from the Matrox Radient eV-CL series provide Camera Link connectivity. Adding Matrox Rapixo CXP series cards delivers up to four CoaXPress 2.0 connections, as well as FPGA processing offload. Use of a Matrox Clarity UHD card allows for capture of eight independent video streams.

Gigabit Ethernet connectivity with Power-over-Ethernet (PoE) support, perfect for interfacing to GigE Vision cameras, is avail- able with Matrox Concord PoE and Matrox Indio frame grabbers and I/O cards, respectively. Matrox Concord PoE can also provide optional Trigger-over-Ethernet (ToE) capability while the Matrox Indio can alternatively deliver hardware-assisted PROFINET ® communication and provides real-time I/O capabilities. Finally, an NVIDIA GPU can be used to accelerate deep learning training.

Rugged, industrial-grade construction

The Matrox 4Sight XV6 fits readily into tough industrial envi- ronments, including warehouses, plants, and manufacturing or fabrication facilities. A full steel chassis protects the system from rough conditions; efficient cooling ensures steady functioning for consistent maximum performance. Serviceable air filters keep the interior of the unit free of foreign particles.

Software Environment

Microsoft Windows 10 IoT Enterprise

Matrox 4Sight XV6 comes pre-installed with Microsoft Windows 10 IoT Enterprise 2019 (64-bit), which provides the familiarity, performance, and reliability of Windows 10, including multi- language support.

Field-proven application development software

Matrox 4Sight XV6 is supported by Matrox Imaging Library (MIL) 1 software—a comprehensive software development kit (SDK) with a 25-year history of reliable performance. This toolkit fea- tures interactive software and programming functions for image capture, processing, analysis, annotation, display, and archiving operations, with the accuracy and robustness needed to tackle the most demanding machine vision applications. Refer to the MIL datasheet for more information.

Connectivity

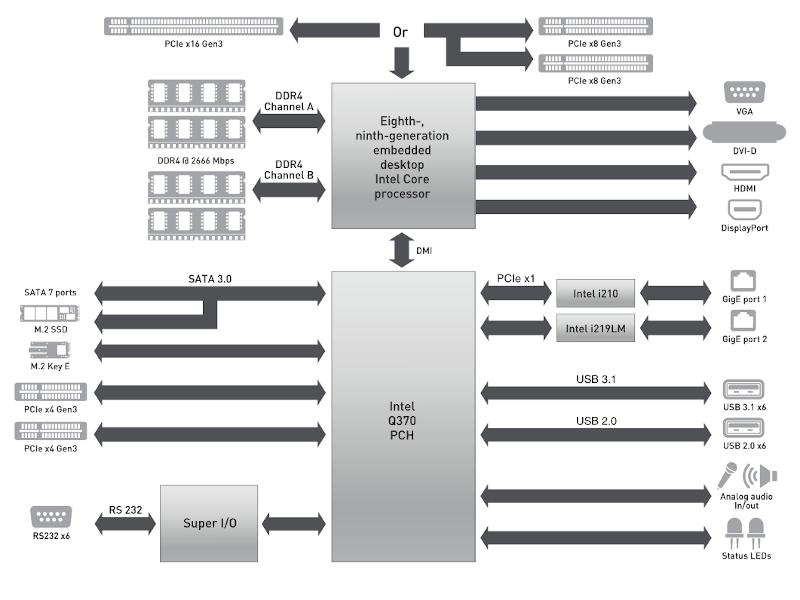

Matrox 4Sight XV6 block diagram

Connectivity

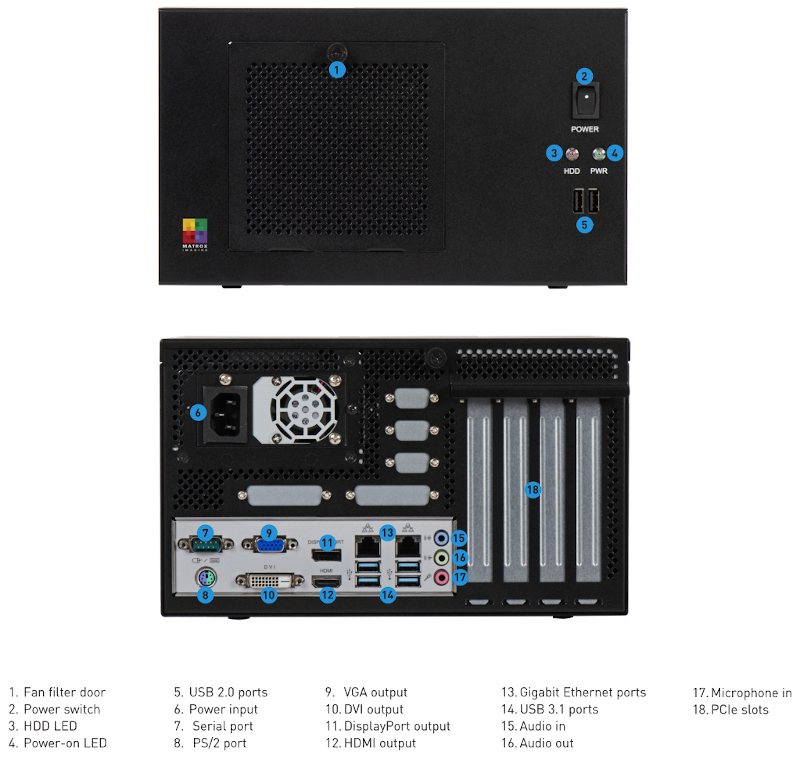

Matrox 4Sight XV6 front and back views

Connectivity

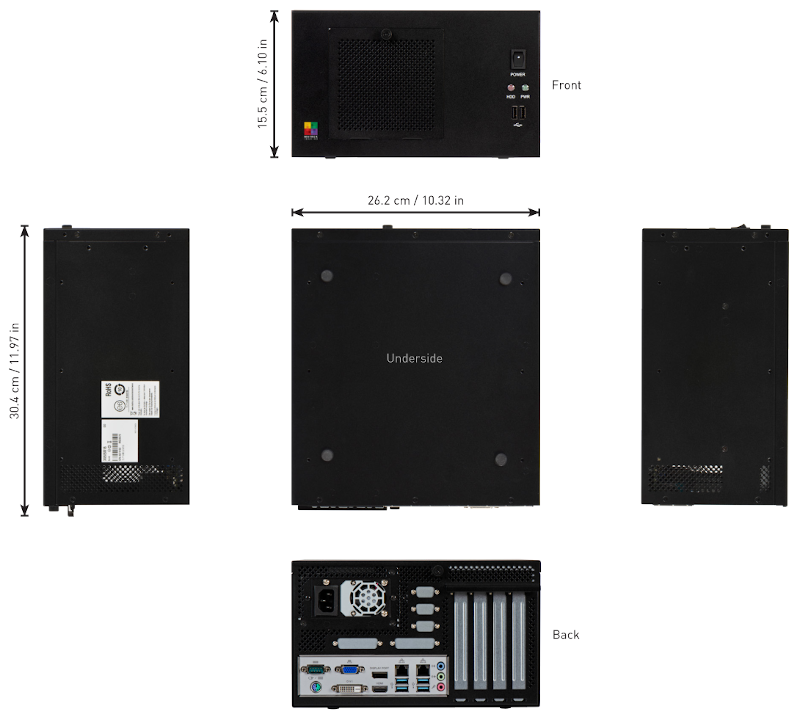

Matrox 4Sight XV6 chassis

Connectivity

Technical specification

SPECIFICATIONS

Motherboard

  • Micro-ATX form factor (24.4 x 24.4 cm or 9.6 x 9.6 in)
  • Intel Q370 Platform Controller Hub (PCH)
  • Four (4) 288-pin DDR4 long-DIMM sockets
    - Up to 64 GB DDR4-2666 SDRAM
  • Triple display
    - One (1) VGA output
      Up to 1920x1200 @ 60 Hz
    - One (1) DVI-D output
      Up to 4096x2304 @ 60 Hz
    - One (1) HDMI 1.4 output
      Up to 4096x2160 @ 24 Hz
    - One (1) DisplayPort 1.2 output
      Up to 4096x2304 @ 60 Hz
  • Two (2) Gigabit Ethernet ports (10/100/1,000)
    - One (1) Intel Ethernet Connection I210
    - One (1) Intel Ethernet Connection I219-LM
  • Twelve (12) USB ports
    - Four (4) USB 3.1 ports
    - Two (2) USB 2.0 ports
    - Two (2) USB 3.1 ports (internal)
    - Four (4) USB 2.0 ports (internal)
  • Eight (8) SATA3 ports (one shared with M.2 Key M)
    - Support for RAID 0, 1, 5, and 10
  • One (1) mini-PCIe (full/half) connector
  • One (1) M.2 Key M (2242/2260/2280) connector (used by 128 GB SSD)
  • One (1) M.2 Key E (2230) connector
  • Stereo line-in
  • Stereo line-out
  • Mic-in
  • Six (6) serial ports
    - One (1) RS-232/RS-422/RS-485 port
    - Five (5) RS-232 ports (internal)
  • One (1) PS/2 combo connector
  • Four (4) PCIe Gen3 slots
    - Slot 1: PCIe x16 (x8 if slot 3 used in x8)
    - Slot 2: PCIe x4
    - Slot 3: PCIe x8 (mechanically x16)
    - Slot 4: PCIe x4

CPU options

  • Intel Core i5-8500 processor
    - Six (6) cores
    - 3.0–4.1 GHz
    - 9 MB cache
    - Intel UHD Graphics 630 (350 MHz–1.1 GHz)
  • Intel Celeron G4900 processor
    - Two (2) cores
    - 3.1 GHz
    - 2 MB cache
    - Intel UHD Graphics 610 (350 MHz–1.05 GHz)

Memory options

  • 8 GB DDR4-2400
  • 16 GB DDR4-2666

Storage

  • 128 GB M.2 2280 SATA3 SSD

Chassis

  • Dimensions (L x W x H): 26.2 x 29.2 x 15.5 cm (10.3 x 11.5 x 6.1 in)
  • Heavy-duty steel
  • Horizontal or vertical mounting
  • 120 mm 138 CFM cooling fan
  • Four (4) PCIe full-height, half-length expansion slots
  • Two (2) USB ports in the front
  • Power switch
  • Power and HDD notification LEDs

Mounting

  • Horizontal or vertical

Power supply

  • Integrated 400 W power supply
  • AC input
    - 100–240 VAC
    - 50–60 Hz
    - 80 Plus Gold rated
    - Power factor corrected
  • Supplemental power connectors
    - Two (2) SATA power (12 VDC & 5 VDC)
    - Two (2) 6-pin + 2-pin PCIe power

Certifications

  • FCC part 15 class A
  • CE Class A
  • RoHS-compliant

Environmental

  • Operating temperature: 10°C to 45°C (50°F to 113°F)
  • Storage temperature: -40°C to 85°C (-40°F to 185°F)
  • Relative humidity: Up to 90% (non-condensing)

Software

  • Pre-loaded with Microsoft Windows 10 IoT Enterprise 2019 (64-bit)
  • Pre-loaded with MIL 10 (run-time)

ORDERING INFORMATION

Hardware

Part number
Description
XV6I5M16 Matrox 4Sight XV6 integrated unit with Intel Core i5-8500, 16 GB DDR4 RAM, 128 GB M.2 MLC SSD, and Microsoft Windows 10 IoT Enterprise (64-bit). Note: The use of this product is governed by Microsoft Software License Terms , among others.
XV6CM8 Matrox 4Sight XV6 integrated unit with Intel Celeron G4900, 8 GB DDR4 RAM, 128 GB M.2 MLC SSD, and Microsoft Windows 10 IoT Enterprise (64-bit).

Software

Software
Refer to MIL datasheet. Note: Complete MIL SDK sold separately.



Endnotes:
1. The software may be protected by one or more patents; see www.matrox.com/patents for more information.

Please, contact us for more informations: +48 32 775 0371, info@crijolanta.com.pl or fill and send our contact form.

Documents

4sight-xv6.pdf - English datasheet
mil10.pdf - Matrox MIL technical description - English datasheet
